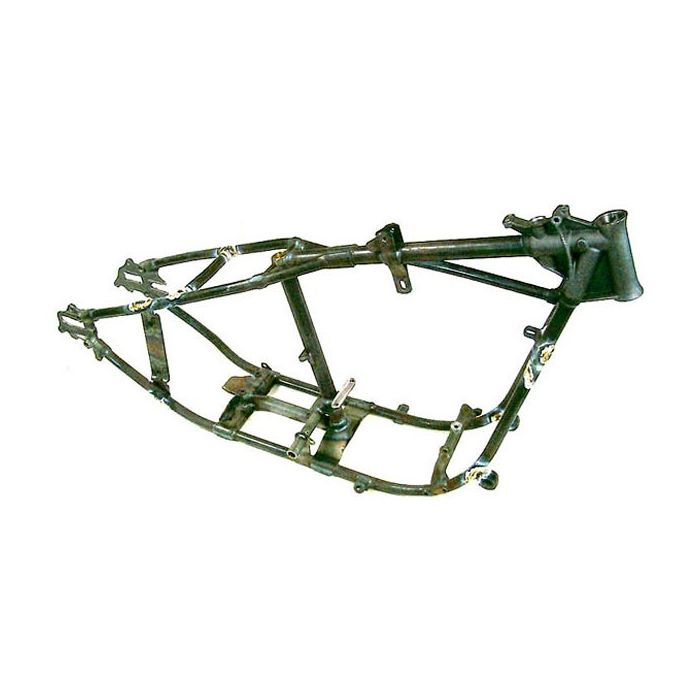

Replica 1936 Knuckle FRAME a close reproduction of the HD factory first year only Frame for 1936 Knuckle Frame has forged steel parts: neck, front and rear motormounts, top seat yoke, footboard tabs and rear axle plates Exact blanked and formed steel stampings are utilized in appropriate areas Rear fender cross bar is supported by exact duplicated “saddles” brazed at each end Seat post bushing, brake cross shaft bushings, and grease fittings are installed The Frame has a 28° neck angle, correct rectangle tool box pads, and 7/8" diameter tank brace Rear brake tab support slot is open like original Front down tubes loop like original first year Knuckle and have the side car loops brazed on As was designed on original 1936, Frame does not have the outer 5th support bracket for transmission Knuckle & UL Motors will fit this Frame without modifications FREE UPS SHIPPING ON THIS FRAME TO THE FIRST 48
