Replica 1938 - 1940 Knucklehead-UL FRAME* Frame has forged steel parts: neck, front and rear motor mounts, side car loops, top seat yoke, footboard tabs and rear axle plates Exact blanked and formed steel stampings are utilized in appropriate areas Rear fender cross bar is supported by exact duplicated “saddles” brazed at each end Seat post, brake cross shaft bushings, and grease fittings are installed The Frame has a 28° neck angle, correct round tool box pads, and 1" diameter tank brace Knuckle & UL Motors will fit this Frame without modifications

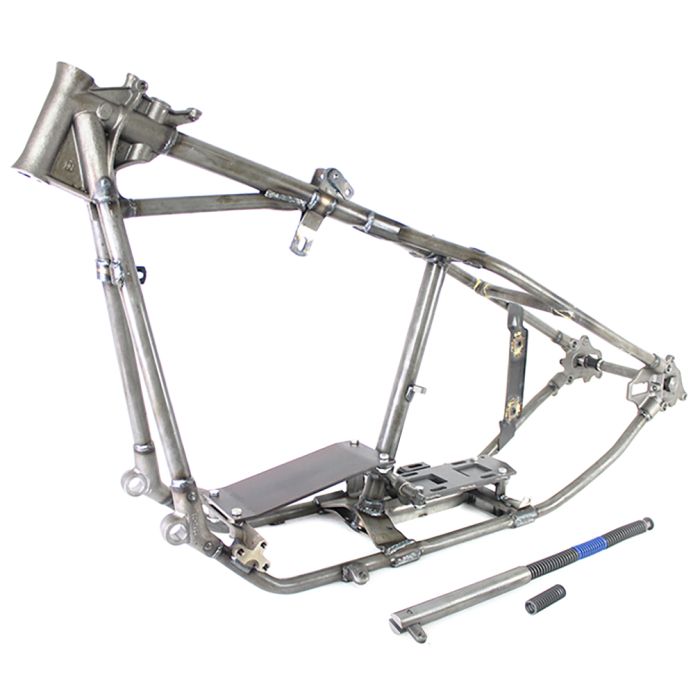

+ Frame shown is illustrative of style of Frame offered. May or may not have some markings. FREE UPS SHIPPING ON THIS FRAME TO THE FIRST 48
